�~ұ���U�����x����̎���c�YԴ���о�
ժҪ ������“�x��������”��Փ,����������������߀ԭ��̼�۽�������ճ��,����?d��)┇�?d��ng)���M(j��n)�~�ij������������е��~���F����,��Ȼ����Ú��w���������λ,��ʹ�F�M������F�V�������(sh��)�F(xi��n)�F���D(zhu��n)�ƺ���,����(sh��)�(y��n)�Y(ji��)������,��̎�������еĚ����~�����أ���5.00%���͵�0.35%���£������F�ڴ��F�V��ĸ�������ߵ�85%����,������5 K/min�Ľ�������,�����F�V��ƽ�����ȿ��_(d��)82��95 μm�����ڌ�(sh��)�F(xi��n)����ԭ�ϴ��F�V�Ĵ��x���x,������������е��~,���F�YԴ��
�P(gu��n)�I�~�� �~�� ؚ�� ���F�V �x��������
�~���к��д����Ŀ����õ��YԴ,���F(xi��n)�����~��ˇ��(c��)����������a(ch��n)Ч��,�����еĚ����~�������ӣ������@�����~�YԴ�ǬF(xi��n)�A��̎���~ұ��������ҪĿ��,�����еĴ��F�����c�~����,�������~��ͬ�r(sh��)���մֵ��F����[1],�����е���Ҫ�V��麬�F�V���1�ͱ�2�����F�����أ�һ�㳬�^40.0%���|(zh��)����?j��n)?sh��)��,���h(yu��n)����ұ���F�V29.1% [2,��3]���Ї�ÿ��a(ch��n)���~ұ���U��150�ft����,����Ӌ(j��)�_(d��)2 500���ft,����������M��ʮ�֏�(f��)�s��������(x��)С,�����F�YԴ��Ҫ���F�����}��ʽ���ڶ��y�����ú�̎��,���@Ȼ��ᘌ��~�������c(di��n),���_�l(f��)���܌�(sh��)�F(xi��n)�Ѓr(ji��)�M�����YԴ���ķ��x���g(sh��), ���о�Ľ�(j��ng)��(j��)Ч��͌W(xu��)�g(sh��)�r(ji��)ֵ,��
�|����W(xu��)����ͨ������Ġt�����x��������̎����Փ�����àt���ĸߜ�?z��)���,�����?j��)���m(x��)̎����Ҫ��,��ͨ�^�������Ɯضȣ����ӄ�,�����w���\(y��n)��(d��ng)�О�,����׃���ĽM�ɺͽY(ji��)��(g��u)���Ķ���(sh��)�F(xi��n)�����Ѓr(ji��)�M�ֵĻ��պ��YԴ��,����̎����Ʒ�N��(f��)�ϵV��͏U�������Ч���h(hu��n)��,����(j��ng)��(j��)�ķ�������Փ,���ѳɹ��ؑ�(y��ng)���ں�⁸ߠt�������F�V�ȏ�(f��)�s�V���̎����,��ȡ�������õ����(hu��)Ч��ͽ�(j��ng)��(j��)Ч��[4,��5]�����~����̎���^����,�����ȼ���߀ԭ�����Ƚ�������ճ��,�����M(j��n)�~�ij��������~������һ���̶Ⱥ�,��ʹ��Ѹ������,����ߴ��������F�ĺ�����ͨ�^�����^�̴ֻ�,����(sh��)�F(xi��n)���F���|(zh��)�Ĵ��x���x,����(sh��)�(y��n)�У��~���К����~�ĺ�����5.0% ���͵�0.5%����,����Fe3O4������26.8%��ߵ�50.0%����,��ͨ�^�D�����,�����������F�����ȴ������,�����w�������ã����ڴ��x���x�����F�V��,�������Ƃ���Բ��Ϻͽ����Fұ��,��β�V�������Ƃ��������̓�(y��u)�|(zh��)ĥ��[5]��Ҳ���Է��������~�۟����ۄ�,���Ķ���(sh��)�F(xi��n)�~�������YԴ�ľC������,���D1���~���x����̎����ˇ���̡�

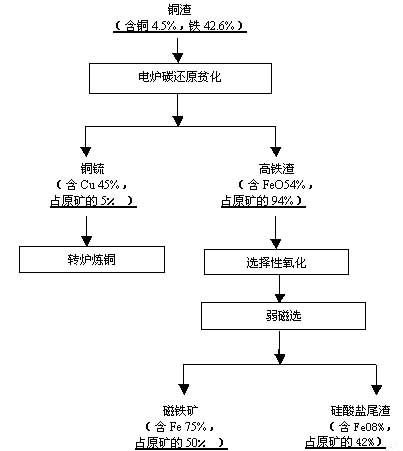

![]() �D 1 �~���x����̎����ˇ���� |
1 ��(sh��)�(y��n)�^��
1.1 ԇ��̎��
��(sh��)�(y��n)�b�ò�����ʽMoSi2�l(f��)���w�ߜؠt, Shimaden SR-53�ͳ���ؿx��,������±0.5 K,��̼���ɵ�?d��)���룬����һ�Εr(sh��)�g��,��ͨ���������w��������՚⣩,�����w���������֞�0.5 L/min����ʹ��LZB�����D(zhu��n)������Ӌ(j��)�O(ji��n)��,���x���ؽY(ji��)���������,����(n��i)�b����100 g���������^�����Ú�Ᵽ�o(h��)�Ա���ԇ������,�������۳��۟���,���M��Ҋ��1�ͱ�2��
��1 ԇ�Ӷ�Ԫ�ػ��W(xu��)������
|
��2 �t����Ҫ�V�P������
|
1.2 ���W(xu��)�c���ȷ���
��Fe2+-�����_���j(lu��)��������߀ԭ�ζ����y��������Fe2+����,�����t����������y������ȫ�F����,��ԇ�Ӳ���Quantimet520�D������x�������д��F�V�����ĸ��������L��r��
2 �Y(ji��)����ӑՓ
�~����Ҫ���F�����}�ʹ��F�V�M��,���F��40%����,����������M��ʮ�֏�(f��)�s��������(x��)С,�����F�M����Ҫ���F�����}��ʽ���ڶ��y�����ú�̎��,����˲���”���~���F”��̎�����
2.1 �~�����~�M���x���������о�
�D2�����К����~���|(zh��)����?j��n)?sh��),��ճ���cFe2+�ĺ����P(gu��n)ϵ,����1 543 K������CaO-FeO-SiO2�wϵ��w(Fe2+)��20%����40%������ճ�ȏ�0.3 Pa?S ���� 0.01 Pa?s����,���~ﳰ돽��0.05 mm,�����Ӻ�Ȟ�0.1 m������ճ��0.05 Pa?S,�t����r(sh��)�g��58 s,��ԭ�����~����ȴ���0.05 mm��ռ�۷e�ֲ���85%����,����߀ԭ����(y��ng)��ֵ���r�£������~���|(zh��)����?j��n)?sh��)��0.35%���ҡ,���Ҋ�������е�Fe3O4����,���~ﳵ�ؚ���^����(sh��)�F(xi��n)��

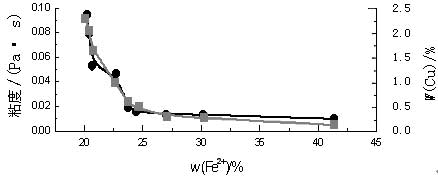

![]() �D2 ���К����~���|(zh��)����?j��n)?sh��),��ճ���cFe2+���|(zh��)����?j��n)?sh��)�P(gu��n)ϵ |
�����м���߀ԭ��,���Ú��w����(d��ng)����߀ԭ����(y��ng)���M(j��n)���У����ĽM�ɰl(f��)��׃��,��Ҫ��Fe3O4��߀ԭ�^��,�����ɵ�Fe2+����s�^�����γ��F�ϙ�ʯ,���}�F�ϙ�ʯ�������}�����w��
2.2 �~�����F�M���x���������о�
�D3��1573 K�����Ě��w�����^����,��������Fe 3+���|(zh��)����?j��n)?sh��)�c�����r(sh��)�g���P(gu��n)ϵ,���ɈD3��Ҋ������Fe3+�S�����M(j��n)�̳�����څ�ݣ��ڿ՚������r(sh��),�����^30 min��,������Fe3+��ߵ�26%���������������|(zh��)�r(sh��),������(y��ng)�������@�ӿ�,������20 min������Fe3+����30%���ϡ����������F�����Դ��F�V��Fe3O4������ʽ����,����������(y��ng)��һ���A�κ�,�����ڴ������F�V��������(hu��)��������ճ�ȣ�ʹ����(y��ng)���y�^�m(x��)�M(j��n)��,��
��3�鲻ͬ�����l���r(sh��)���������F��ƽ��������,������������������s����,����5 K/min�Ľ������ʗl����,�����F�V��λƽ������D50���_(d��)��82��95 μm�����������������,��80%���ϵ��F�����ڴ��F�V�ࡣ

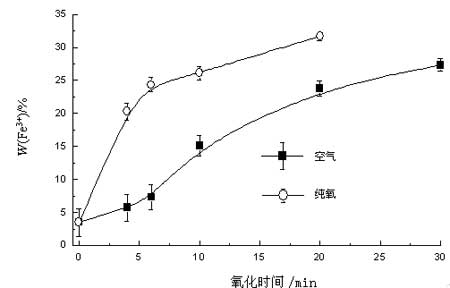

![]() �D3 ����Fe 3+���|(zh��)���ٷֺ����c�����r(sh��)�g���P(gu��n)ϵ(����y��ֵ) |
��3 ��ͬ�l���µĴ��������F������r����
|
ע��* D50����λƽ������,��** �ֲ��ڴ��F�V�е��Fռ��Ԫ���F���ķ�?j��n)?sh��),�����F�ڴ��F�V�еĸ����ȡ�
3 �Y(ji��) Փ
��1������̼��߀ԭ�~����,�����@����������Fe3O4,����Ч��������ճ�ȣ����M(j��n)�������~�ij����^�̵��M(j��n)��,�������~���|(zh��)����?j��n)?sh��)���ֵ�_(d��)��0.35%����,��
��2�������������^����,�F�ϙ�ʯ����u�p��, ���F�V����u���ӡ�ͨ�^�������Ԍ�(sh��)�F(xi��n)�F���D(zhu��n)�ƺ������m��(d��ng)?sh��)ؿ���������������s���ʿ��Դ��M(j��n)���F�V�ľ��w���L,����5 K/min�Ľ������ʗl����,�����F�V��ƽ�����ȿ��_(d��)��82��95 μm���dz����ڴ��x���x,��
�����īI(xi��n)
1 Vaisdurd S, Brandon A G., Kozhakhmetov S M.Physicochemical properties of matte-slag Melts taken from vanyukov’s furnace for copper extraction.Metallurgical and Material Trans B,��2002��33��561��564
2 ��h(yu��n)��.�����~�t��ؚ����������.������ɫ����,��2001,����9����56��62
3 �ܾ�����������.�Ї��F�V���_�l(f��)�c����.�Ї��V�I(y��),��1994,��14��3����17��22
4 Sui Z T.Precipitation selectivity of boron compounds from slags.Acta Mater, 1999, 47(4): 1337��1344
5 Sui Z T.A novel technique to recovery value nonferrous metal compounds from metallurgical slags��proceeding of global symposium on recycling waste treatment and clean technology.Spain��San Sebastian,��1999.5��9

ʹ����“��һ��”��������“���v�h(hu��n)���W(w��ng)”
